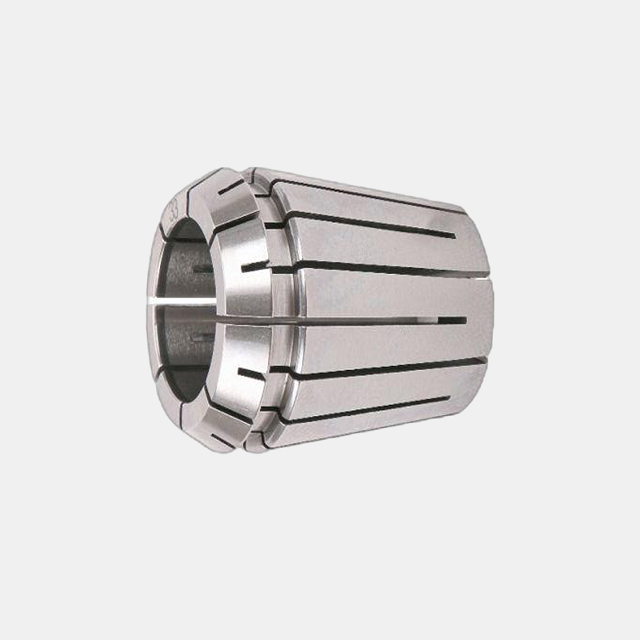

Высокая точность ER TAP Collet Accessories Accessories China Cnc Tooling Поставщики
| Размер метрики (блок: мм) | ||||
| Mocel no | D | L | d | Вес (кг) |
| ER08 | 8.5 | 13.5 | От 1 до 5 мм с шагами 0,5 мм (9 шт. | 0.01 |
| ER11 | 11.5 | 18 | От 1 до 7 мм на ступеньках 0,5 мм (13 шт. | 0.01 |
| ER16 | 17 | 27 | 1-10 мм в шагах 0,5 мм (19 шт. | 0.03 |
| ER20 | 21 | 31 | От 1 до 13 мм на стадии 0,5 мм (25 шт. | 0.04 |
| ER25 | 26 | 35 | 2-16 мм в шагах 1 мм (15 шт. | 0.07 |
| ER32 | 33 | 40 | 2-20 мм в шагах 1 мм (19 шт. | 0.15 |
| ER40 | 41 | 46 | От 3 до 26 мм в шагах 1 мм (24 шт. | 0.27 |
| ER50 | 52 | 60 | От 12 до 34 мм с шагами 2 мм (12 шт. | 0.45 |
| ER08 | ER11 | ER16 | ER20 | ER25 | ER32 | ER40 | ER50 | ||||||||
| НЕТ. | Диапазон | НЕТ. | Диапазон | НЕТ. | Диапазон | НЕТ. | Диапазон | НЕТ. | Диапазон | НЕТ. | Диапазон | НЕТ. | Диапазон | НЕТ. | Диапазон |
| ER08-01 | 1 | ER11-01 | 1 | ER16-01 | 1,0 ~ 0,5 | ER20-01 | 1,0 ~ 0,5 | ER25-02 | 2,0 ~ 1,0 | ER32-02 | 2,0 ~ 1,0 | ER40-03 | 3,0 ~ 2,0 | ER50-12 | 12 ~ 10 |
| ER08-1,5 | 1.5 | ER11-1.5 | 1.5 | ER16-1.5 | 1,5 ~ 1,0 | ER20-1,5 | 1,5 ~ 1,0 | ER25-03 | 3,0 ~ 2,0 | ER32-03 | 3,0 ~ 2,0 | ER40-04 | 4,0 ~ 3.0 | ER50-14 | 14 ~ 12 |
| ER08-02 | 2,0 ~ 1,5 | ER11-02 | 2,0 ~ 1,5 | ER16-02 | 2,0 ~ 1,0 | ER20-02 | 2,0 ~ 1,0 | ER25-04 | 4,0 ~ 3.0 | ER32-04 | 4,0 ~ 3.0 | ER40-05 | 5,0 ~ 4,0 | ER50-16 | 16 ~ 14 |
| ER08-2.5 | 2,5 ~ 2,0 | ER11-2.5 | 2,5 ~ 2,0 | ER16-2.5 | 2,5 ~ 2,0 | ER20-2.5 | 2.5-2.0 | ER25-05 | 5,0 ~ 4,0 | ER32-05 | 5,0 ~ 4,0 | ER40-06 | 6,0 ~ 5,0 | ER50-18 | 18 ~ 16 |
| ER08-03 | 3,0 ~ 2,5 | ER11-03 | 3,0 ~ 2,5 | ER16-03 | 3,0 ~ 2,0 | ER20-03 | 3,0 ~ 2,0 | ER25-06 | 6,0 ~ 5,0 | ER32-06 | 6,0 ~ 5,0 | ER40-07 | 7,0 ~ 6,0 | ER50-20 | 20-18 |
| ER08-3.5 | 3,5 ~ 3.0 | ER11-3.5 | 3,5 ~ 3.0 | ER16-3.5 | 3,5 ~ 3.0 | ER20-3.5 | 3,5 ~ 3.0 | ER25-07 | 7,0 ~ 6,0 | ER32-07 | 7,0 ~ 6,0 | ER40-08 | 8,0 ~ 7,0 | ER50-22 | 22 ~ 20 |
| ER08-04 | 4,0 ~ 3,5 | ER11-04 | 4,0 ~ 3,5 | ER16-04 | 4,0 ~ 3.0 | ER20-04 | 4,0 ~ 3.0 | ER25-08 | 8,0 ~ 7,0 | ER32-08 | 8,0 ~ 7,0 | ER40-09 | 9,0 ~ 8,0 | ER50-24 | 24 ~ 22 |
| ER08-4.5 | 4,5 ~ 4,0 | ER11-4.5 | 4,5 ~ 4,0 | ER16-4.5 | 4,5 ~ 4,0 | ER20-4.5 | 4,5 ~ 4,0 | ER25-09 | 9,0 ~ 8,0 | ER32-09 | 9,0 ~ 8,0 | ER40-10 | 10 ~ 9.0 | ER50-26 | 26 ~ 24 |
| ER08-05 | 5,0 ~ 4,5 | ER11-05 | 5,0 ~ 4,5 | ER16-05 | 5,0 ~ 4,0 | ER20-05 | 5,0 ~ 4,0 | ER25-10 | 10 ~ 9.0 | ER32-10 | 10 ~ 9.0 | ER40-11 | 11 ~ 10 | ER50-28 | 28 ~ 26 |
| ER11-5.5 | 5,5-5,0 | ER16-5.5 | 5,5-5,0 | ER20-5.5 | 5,5 ~ 5,0 | ER25-11 | 11 ~ 10 | ER32-11 | 11 ~ 10 | ER40-12 | 12 ~ 11 | ER50-30 | 30 ~ 28 | ||
| ER11-06 | 6,0 ~ 5,5 | ER16-06 | 6,0 ~ 5,0 | ER20-06 | 6,0 ~ 5,0 | ER25-12 | 12 ~ 11 | ER32-12 | 12 ~ 11 | ER40-13 | 13 ~ 12 | ER50-32 | 32 ~ 30 | ||
| ER11-6.5 | 6.5-6.0 | ER16-6.5 | 6,5 ~ 6,0 | ER20-6.5 | 6,5 ~ 6,0 | ER25-13 | 13 ~ 12 | ER32-13 | 13 ~ 12 | ER40-14 | 14-13 | ER50-34 | 34 ~ 32 | ||
| ER11-07 | 7,0 ~ 6,5 | ER16-07 | 7,0 ~ 6,0 | ER20-07 | 7,0 ~ 6,0 | ER25-14 | 14 ~ 13 | ER32-14 | 14 ~ 13 | ER40-15 | 15 ~ 14 | ||||
| ER16-7.5 | 7,5 ~ 7,0 | ER20-7.5 | 7,5 ~ 7,0 | ER25-15 | 15 ~ 14 | ER32-15 | 15 ~ 14 | ER40-16 | 16 ~ 15 | ||||||
| ER16-08 | 8,0 ~ 7,0 | ER20-08 | 8,0 ~ 7,0 | ER25-16 | 16 ~ 15 | ER32-16 | 16 ~ 15 | ER40-17 | 17 ~ 16 | ||||||
| ER16-8.5 | 8,5 ~ 8.0 | ER20-8.5 | 8,5 ~ 8.0 | ER32-17 | 17 ~ 16 | ER40-18 | 18 ~ 17 | ||||||||
| ER16-09 | 9,0 ~ 8,0 | ER20-09 | 9,0 ~ 8,0 | ER32-18 | 18 ~ 17 | ER40-19 | 19 ~ 18 | ||||||||
| ER16-9.5 | 9.5-9.0 | ER20-9,5 | 9,5 ~ 9,0 | ER32-19 | 19 ~ 18 | ER40-20 | 20 ~ 19 | ||||||||
| ER16-10 | 10 ~ 9.0 | ER20-10 | 10 ~ 9.0 | ER32-20 | 20 ~ 19 | ER40-21 | 21 ~ 20 | ||||||||
| ER20-10.5 | 10,5 ~ 10 | ER40-22 | 22 ~ 21 | ||||||||||||
| ER20-11 | 11 ~ 10 | ER40-23 | 23 ~ 22 | ||||||||||||
| ER20-11.5 | 11,5 ~ 11 | ER40-24 | 24 ~ 23 | ||||||||||||
| ER20-12 | 12 ~ 11 | ER40-25 | 25 ~ 24 | ||||||||||||
| ER20-12.5 | 12,5 ~ 12 | ER40-26 | 26 ~ 25 | ||||||||||||
